Communication project of Air control to airport

DTR-100 Transceiver communication transmission project

In view of increasingly raise of the civil aviation flight flow, air traffic control bureau come up with higher requirements to the communication equipment construction and transmission safety assurance, especially for the ground-air communication equipment which is based on VHF transceiver and is playing an important role in the course of guarantee flight and safety.

AK-100 remote control box and DTR-100 transceiver of Italy OTE company is one of commonly used VHF equipments for domestic civil aviation airport, in the normal condition, DTR-100 transceiver is to be installed in the remote station, AK-100 remote control box is to be installed in the local air traffic control building, achieve VHF information remote communication transmission through fiber or E1 line.

In order to meet the high and reliable transmission requirement to airport VHF transceiver, Guangzhou Yinxun Comm. Tech. Co., Ltd. has specially developed ZMUX series communication transmission equipment for airport clients, which can meet the functions of double route protection transmission, transmission route monitoring alarm, transceiver port monitoring alarm for DTR-100 transceiver, guarantee the safe and stable transmission for DTR-100 transceiver.


The network diagram is shown as below:

a)Double channel fiber protection transmission, choose ZMUX-3036S2.

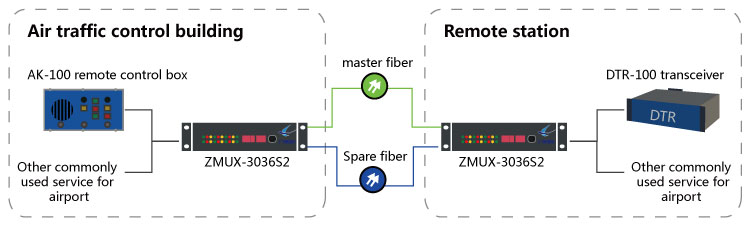

Double fiber protection transmission network diagram for AK-100 and DTR-100


b)Double channel E1 protection transmission, choose ZMUX-3036


Double E1 channel protection transmission network diagram for AK-100 and DTR-100


c)1 channel fiber and 1 channel E1 protection transmission (1 for ground, 1 for air protection transmission), choose ZMUX-3036ES.

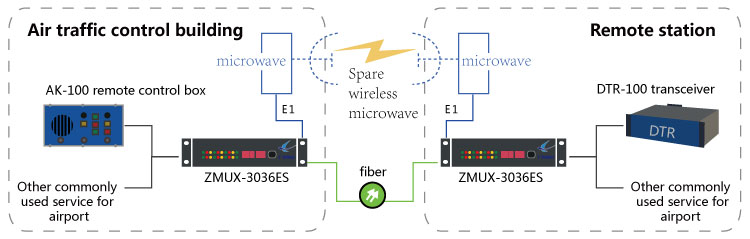

1 optical and1 electrical protection transmission network diagram for AK-100 and DTR-100


Guangzhou Yinxun Comm. Tech. Co., Ltd.’s series product support centralized monitoring function, client could carry out the unified monitoring and management to the whole network equipments in the local air traffic control building, it can monitor: a) two channels transmission line state, b) line protection switch state; c) VHF port monitoring.

Client may inquire about a certain period of time of master or spare transmission line malfunction, VHF port malfunction, etc, through inquiring about malfunction log, equipment alarm way support: a) luminous indicator lamp alarm; b) monitoring system sound alarm; c) mobile phone message alarm advice.

The part of airport client only can provide with single channel fiber or E1 channel, it can choose ZMUX-3032 or ZMUX-3030, the diagram is shown as below:


a)Single channel E1 line transmission, ZMUX-3030 is to be chosen.


E1 Transmission network diagram for AK-100 and DTR-100


b)Single channel fiber line transmission, ZMUX-3032 is to be chosen.


Fiber transmission network diagram for AK-100 and DTR-100


Guangzhou Yinxun Comm. Tech. Co., Ltd.’s series equipment also has successfully transmitted multiple famous brand transceivers, for instance, Germany R&S corporation, England PAE corporation, Norway Jotron corporation, Japan Jianwu transceiver, New Zealand Daji corporation, MX800 transceiver of Australia pinup corporation, etc.
